We specialize in designing and manufacturing pressure and liquid level switches to customer specifications, supplying large and small OEM and aircraft system manufacturers. See below for a non-exhaustive list of highlights from our product catalog.
Vertical Liquid Level Switches
Barometric Pressure Switches
Hydraulic Pressure Switches
Horizontal Liquid Level Switches
product details

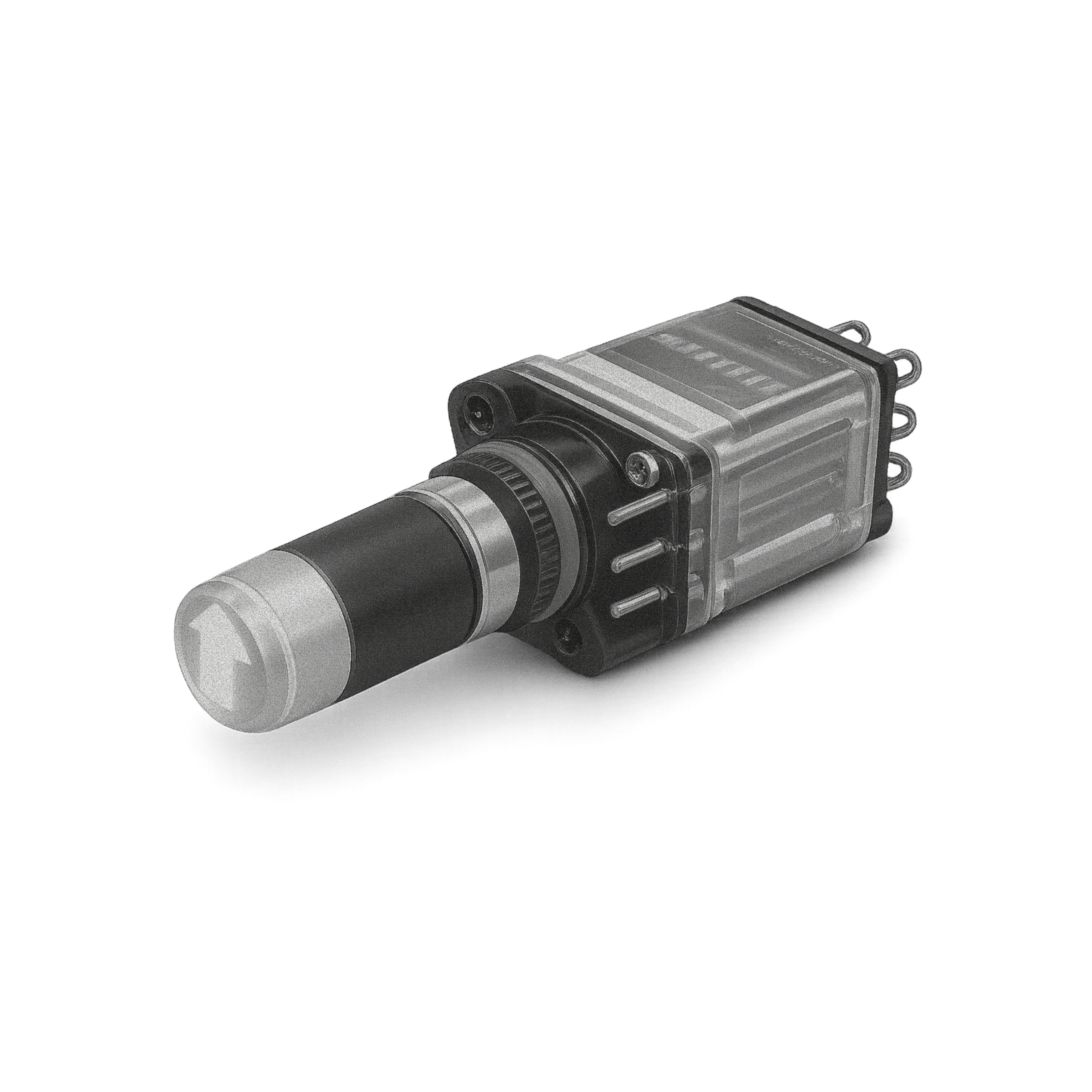

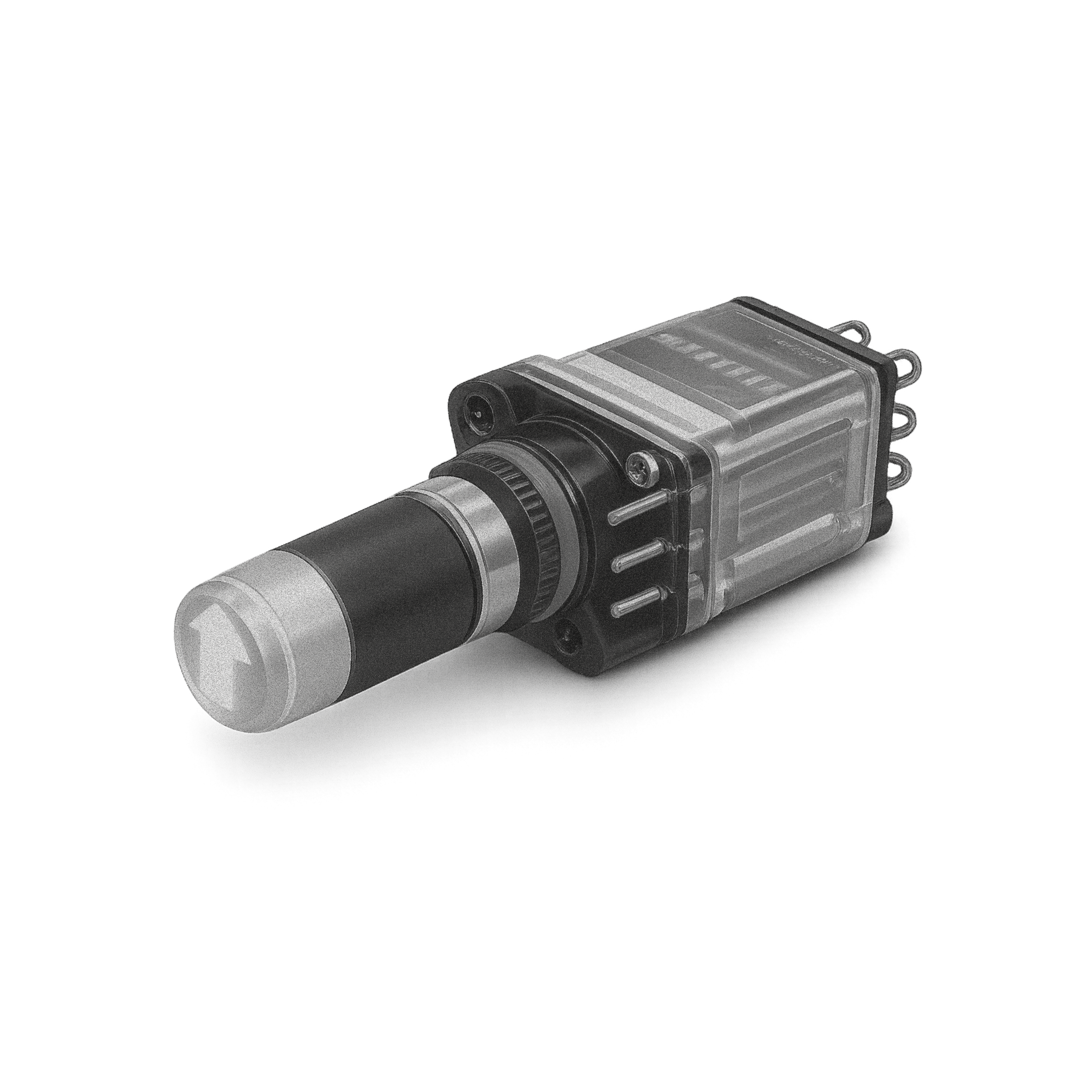

SW44109
Hall Effect Potentiometer Switch
DESCRIPTION
The hall-effect switch + potentiometer assembly offers the advantages of both digital and rotary control in a compact size for audio volume preset in avionics cockpit applications. Illumination of the edgelit knob is via an edgelit panel. Front facing PC pins allow unit to be mounted from behind the panel.
Configuration
Compact combination switch
SPST, 1 N.O. hall effect IC switch
100K potentiometer value
1/2″ square body size
Front facing PC pins for easy interconnect
Specifications
IC supply voltage: 3.8vdc minimum; IC supply current: 5mA maximum
1.0 ounce maximum
35 + 5 ounces
100,000 MINIMUM
BLACK ANODIZED
MOUNTING EARS
Edgelit knob is supplied with this assembly.
